| Place of Origin: | PRC |
|---|---|
| Brand Name: | Betop |
| Certification: | ISO9001 |
| Model Number: | SC403001U |
| Minimum Order Quantity: | 50pcs |
| Price: | USD10.00-USD100.00 |
| Packaging Details: | Plastic tube plus printing label with specifications or plastic box with hanger plus printing cards. |
| Delivery Time: | 8 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 6000pcs per month |
| Material: | Industrial Grade Solid Carbide | Type: | 3D Carving Bits |
|---|---|---|---|
| Flute: | Double, Three, Four Flute | Shank Dia. In Imperial: | 1/4 Inch To 1/2 Inch |
| Shank Dia. In Metric: | 6.35 Mm To 12.7 Mm | Usage: | Special Designed For Carving 3D Profiles On Plastic，solid Wood And Other Materials |
| Size: | Metric Size Are Available | ||
| High Light: | Three Flute CNC Carving Bit,Carbide Spiral Upcut Router Bit,12.7mm Dia CNC Carving Bit |
||

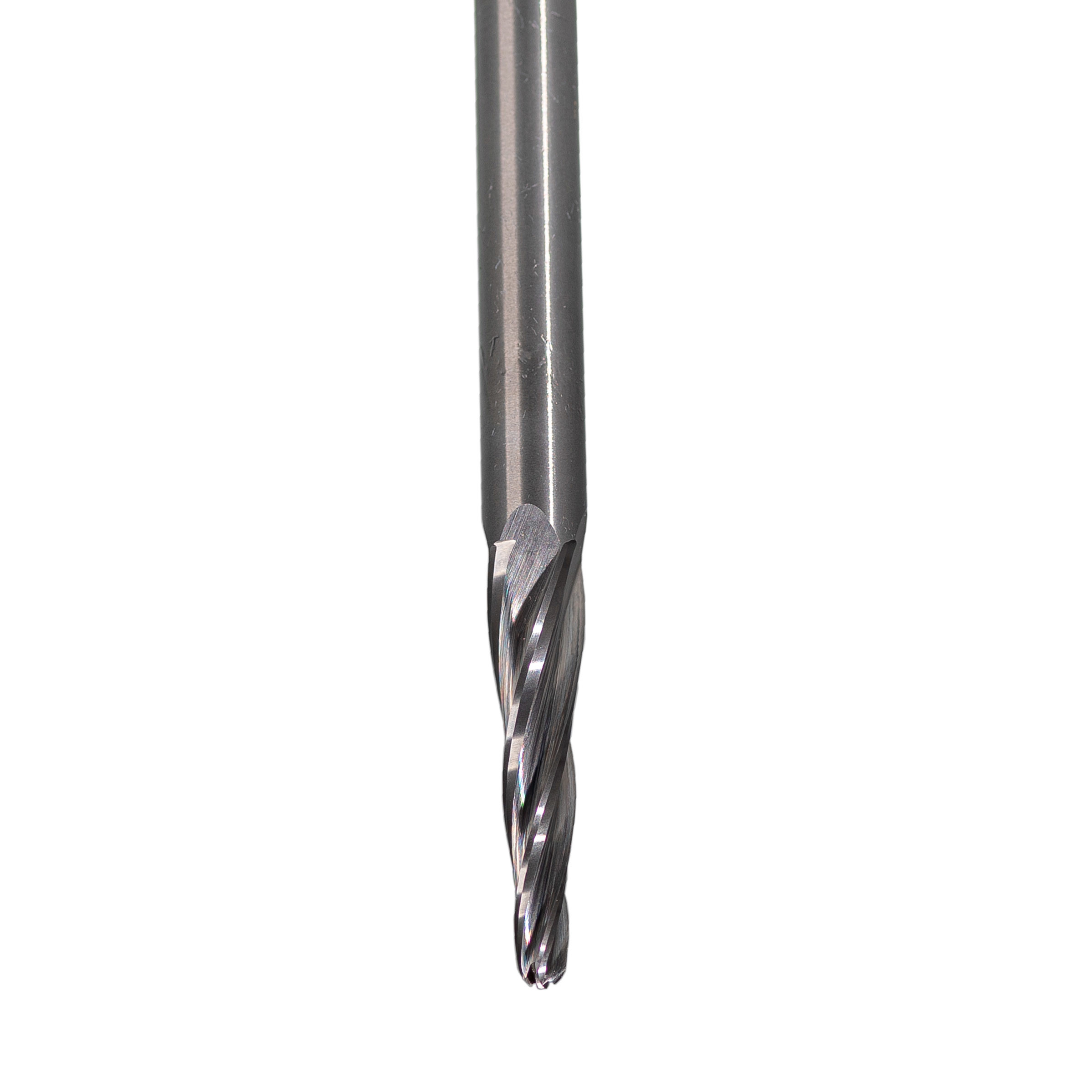

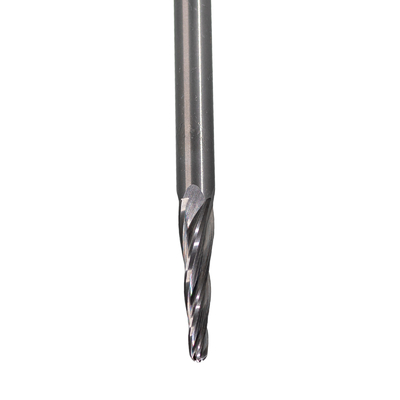

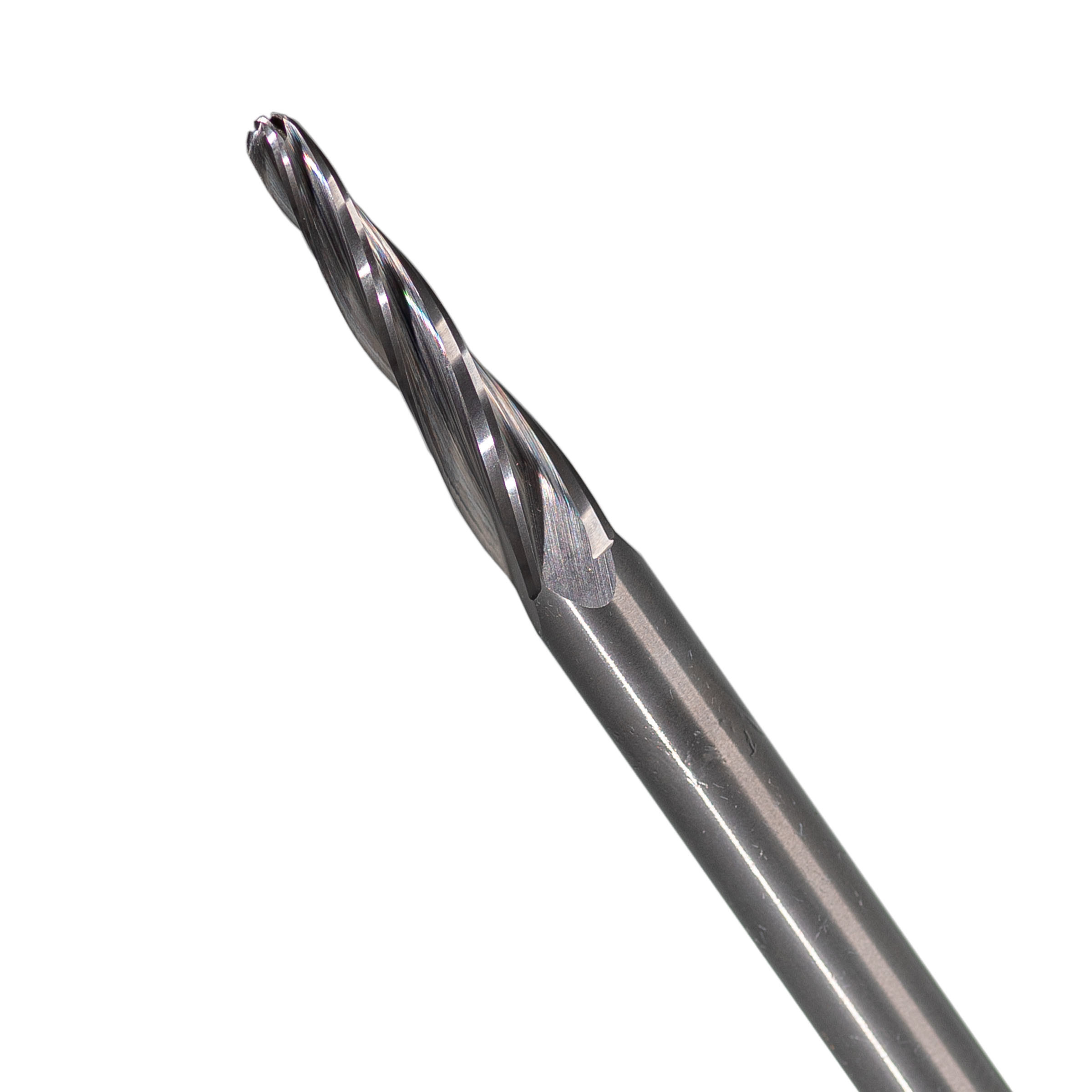

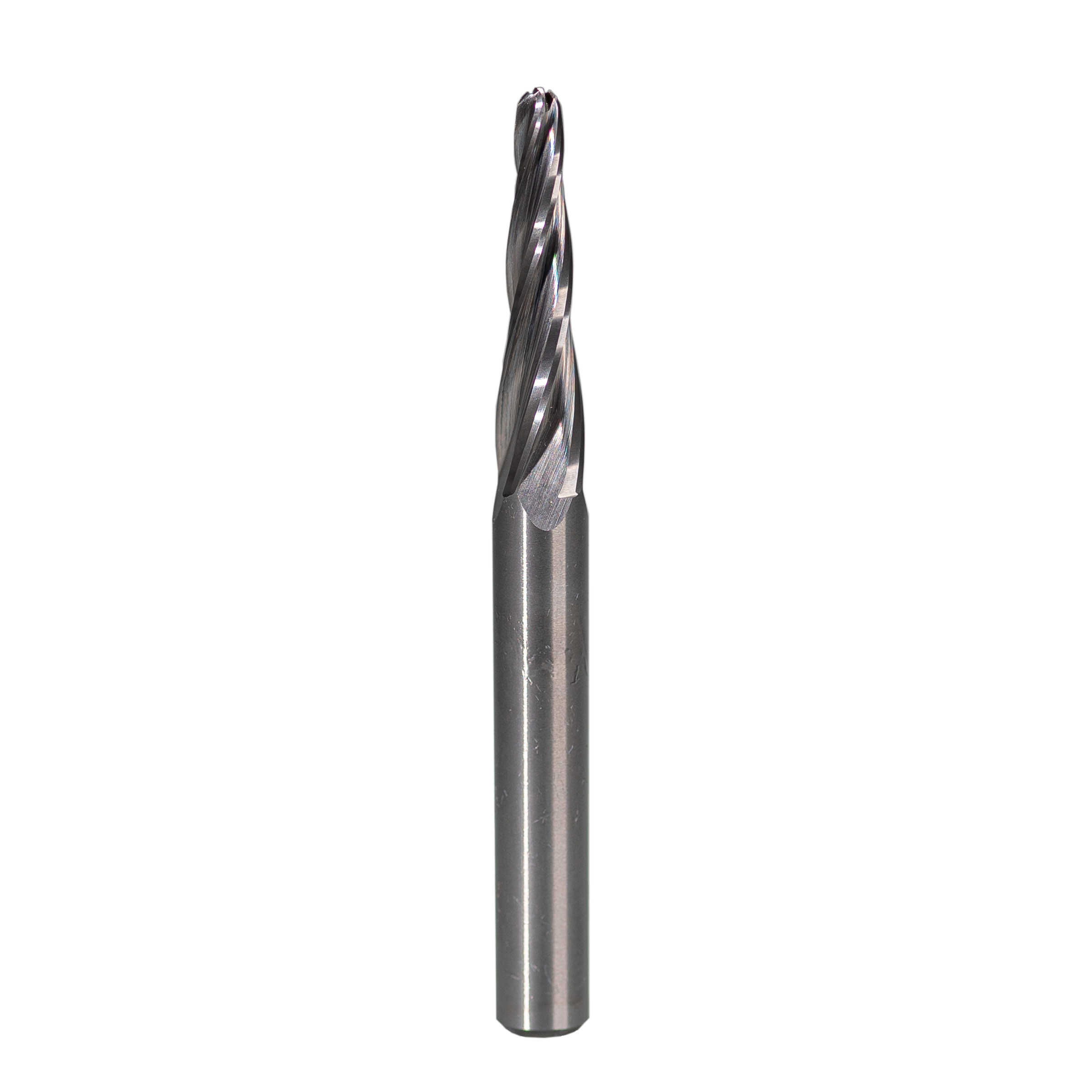

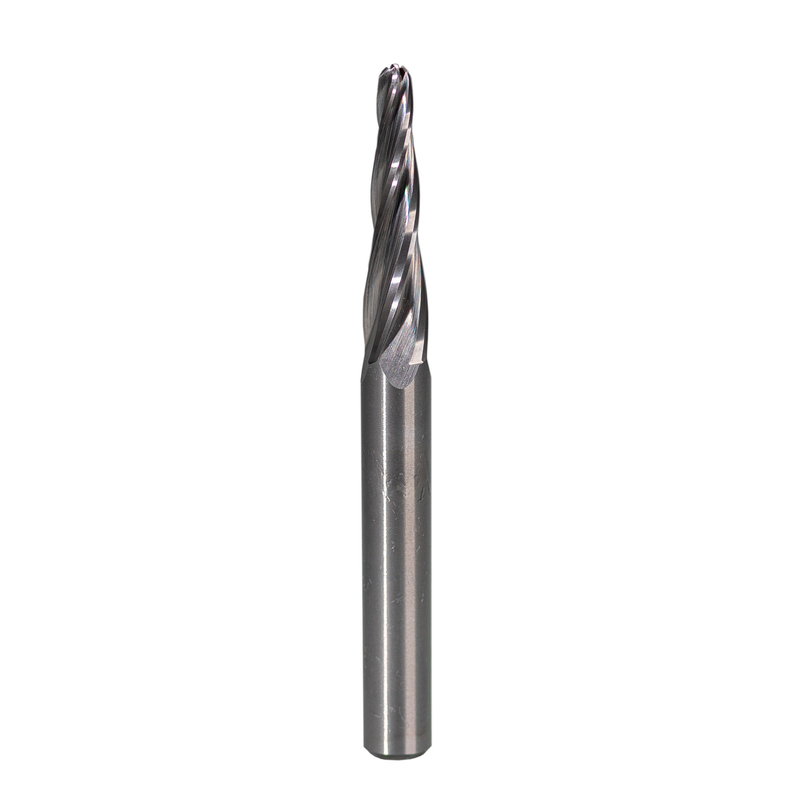

Double, Three and Four Flute, Solid Carbide Upcut Spiral Tapered 3D Carving Bits
Double, Three And Four Flute Solid Carbide Upcut Spiral Tapered 3D Carving Bits
Technical Information
Industrial grades of carbide used according to the application needs.
Special design of tooth geometry for perfect cuts.
Advanced reserch and manufacturing know-how with innovative solutions.
Products Description
Application:Used on CNC machine.
Usage:Special designed for carving 3D profiles on plastic,solid wood and other materials. The tapered down tips have much smaller radius which could create detailed profiles on many materials.
Ball Nose Dia. in Metric:2 mm to 9.5 mm
Ball Nose Dia. in Imperial:1/16 inch to 3/8 inch
Cutting Length in Metric: 19 mm - 38 mm
Cutting Length in Imperial: 3/4 inch to 1-1/2 inch
Shank Dia. in Metric: 6.35 mm to 12.7 mm
Shank Dia. in Imperial: 1/4 inch to 1/2 inch
Overall Length in Metric: 76 mm - 102 mm
Overall Length in Imperial: 3 inch to 4 inch
Angle Per Side: 1° to 7°
| Ball Nose Dia. in Metric | 2 mm to 9.5 mm |
| Ball Nose Dia. in Imperial | 1/16 inch to 3/8 inch |
| Cutting Length in Metric: | 19 mm - 38 mm |
| Cutting Length in Imperial | 3/4 inch to 1-1/2 inch |
| Shank Dia. in Metric | 6.35 mm to 12.7 mm |
| Shank Dia. in Imperial | 1/4 inch to 1/2 inch |
| Overall Length in Metric | 76 mm - 102 mm |
| Overall Length in Imperial | 3 inch to 4 inch |
| Angle Per Side | 1° to 7° |
