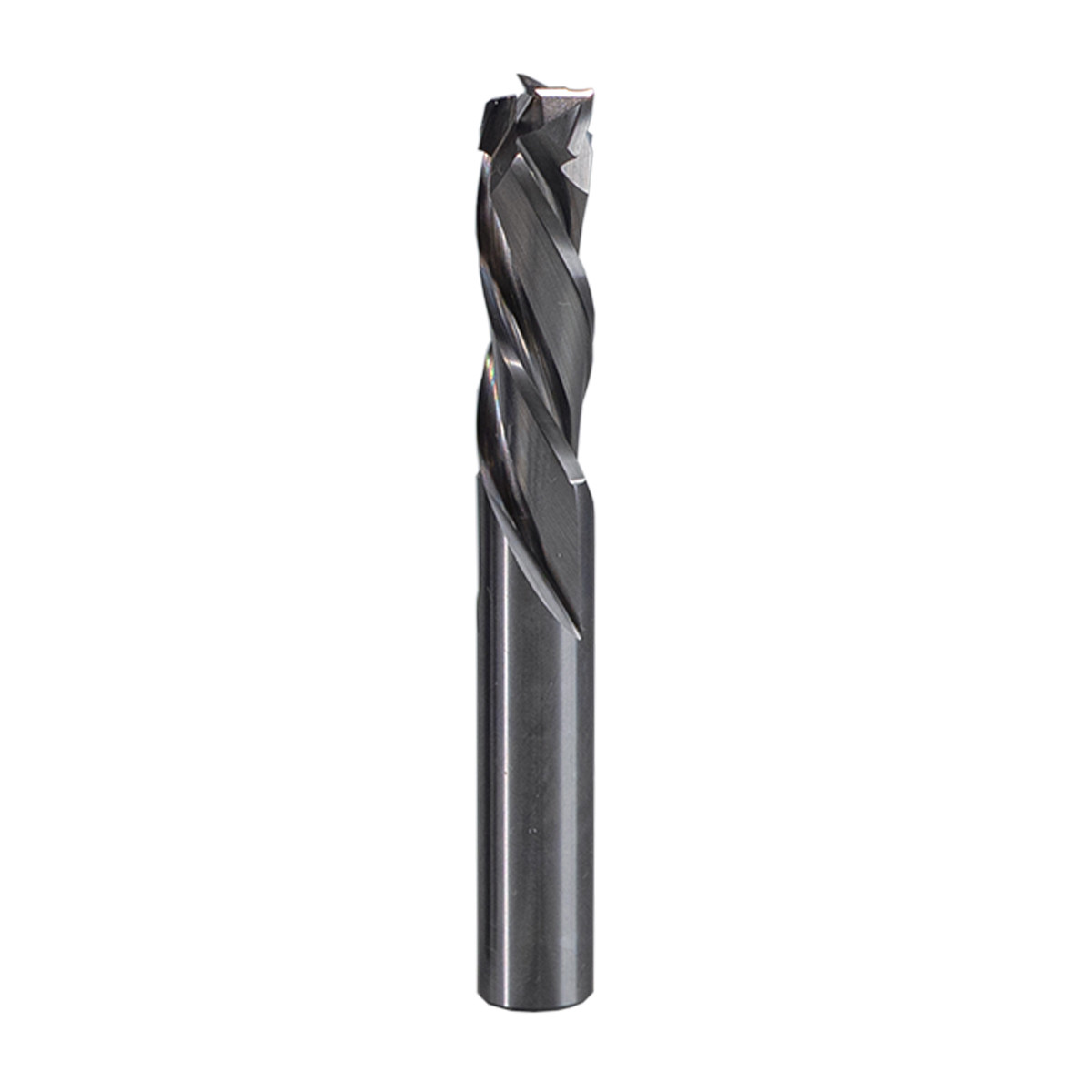

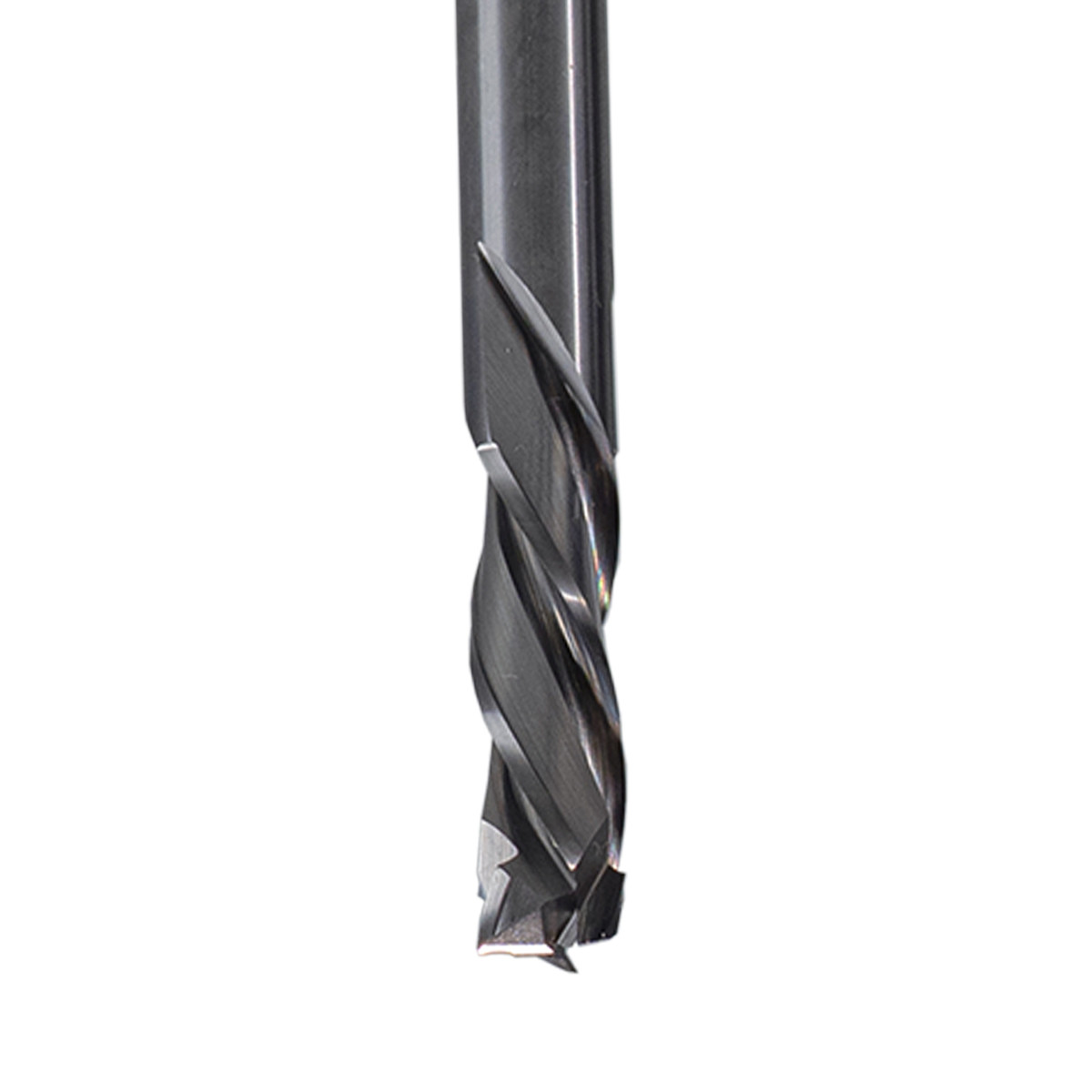

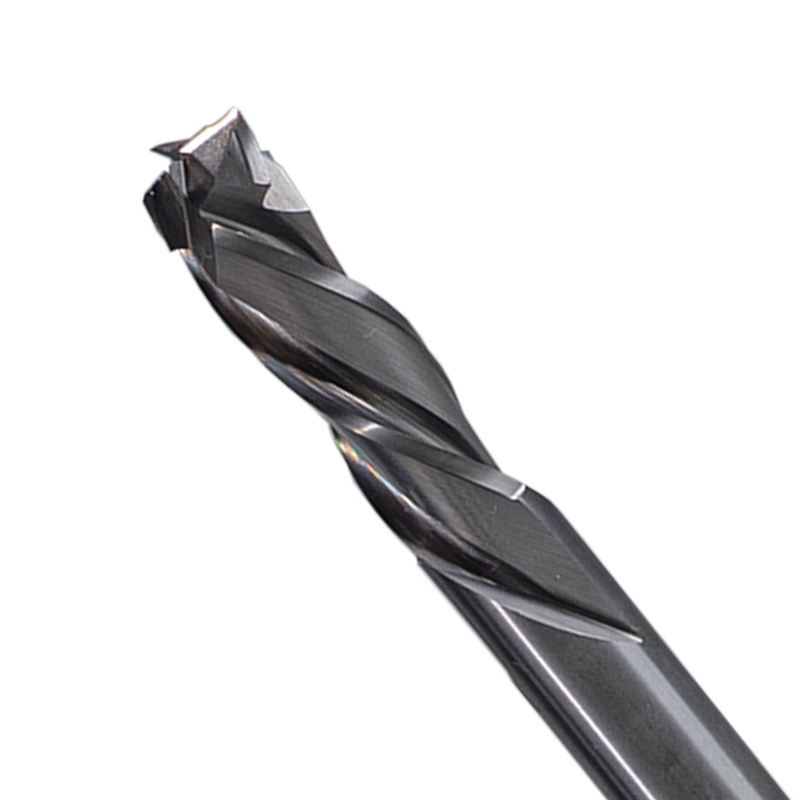

Solid Carbide Compression Spiral Router Bit For Double Sided Laminated Material

Basic Information
Place of Origin: PRC
Brand Name: Betop
Certification: ISO9001
Model Number: SC033129C
Minimum Order Quantity: 50 pcs to 100 pcs
Price: USD25.00 to USD80.00
Packaging Details: Plastic tube plus printing label with specifications for Industrial market use.
Delivery Time: 8 weeks after order confirmation
Payment Terms: L/C, D/A, D/P, T/T, Western Union are available
Supply Ability: 10000 pcs per month
Material: Industrial Grade Solid Tungsten Carbide Material Feature: Compression Bit Combined Upcut And Downcut Flutes
Cutting Dia.: From 3/8 Inch To 1/2 Inch Cutting Length: From 1-1/8 Inch To 1-5/8 Inch
Application: Suggest To Use On The CNC Machines Usage: Excellent For Double Sided Laminated And Veneerd Materials
High Light:

Compression Spiral Router Bit

,

Laminated Material Spiral Router Bit

,

compression router bit



Three Flute Solid Carbide Copression Spiral Cutters Excellent For Cutting Double Sided Laminated And Veneerd Materials

Three Flute Solid Carbide Copression Spiral Cutters for Double Sided Laminated



Technical Information

Solid carbide Compression spiral cutters provide the best edge quality and cuts at the fasted rate compare to any other types of routing tools, the bit combined upcut and downcut flutes which compress the material being cut preventing chipping or fuzzing on the top and bottom of the cut.

Industrial grades of solid carbide used according to the application of different needs.

Special designed teeth geometry to obtain flawless cuts.

Advanced reserch as well as manufacturing know-how with innovative solution.



Products Description

Application: Suggest to sed on CNC machines.

Usage: Designed for cutting double sided laminated and veneered materials in perfect surface finish.

Cutting Dia. in Metric: From 9.50 mm to 12.70 mm

Cutting Dia. in Imperial: From 3/8 Inch to 1/2 Inch

Cutting Length in Metric: From 28.50 mm - 41.00 mm

Cutting Length in Imperial: From 1-1/8 Inch to 1-5/8 Inch

Shank Dia. in Metric: From 9.50 mm to 12.70 mm

Shank Dia. in Imperial: From 3/8 Inch to 1/2 Inch

Overall Length in Metric: From 76mm to 89mm

Overall Length in Imperial: From 3 Inch to 3-1/2 Inch

Cutting Dia. in Metric From 9.50 mm to 12.70 mm
Cutting Dia. in Imperial From 3/8 Inch to 1/2 Inch
Cutting Length in Metric From 28.50 mm - 41.00 mm
Cutting Length in Imperial From 1-1/8 Inch to 1-5/8 Inch
Shank Dia. in Metric From 9.50 mm to 12.70 mm
Shank Dia. in Imperial From 3/8 Inch to 1/2 Inch
Overall Length in Metric From 76mm to 89mm
Overall Length in Imperial From 3 Inch to 3-1/2 Inch



Why Choose Betop?

Over the past decades, Betop has always been insisted on offering superior quality tool solutions to our customers all over the world. Starting from being professional in wood working field, Betop’s high quality standards and advanced techniques has now been spread to plastic and metal cutting fields. We are aimed at providing the Right Tools to the Right People Right on time.

With full products line of professional industrial quality tools including TCT router bits, TCT saw blades, CNC tooling, HSS tools and more, Betop feels that it is our responsibility to help our customers to achieve manufacturing goals.

And we never stop creating as well as innovating. Betop’s patterns and products have been improved with the changing of market and needs. The only thing that never change is our high-standard quality requirement for our own creations. Especially when techniques become significant for cutting, Betop is always on the first line of solving cases effectively and efficiently. We are also experts to customize tools along with customers’ needs.

We do care about our customers’ opinions. Betop’s boundary-less customer service support our clients regardless of area. We believe that customers’ reaction is the key of improving our manufacturing.

Betop is committed to manufacture the top-quality cutting tools under all conditions. Our patent products and techniques are the best prove of our professionalism, and are the strongest fact trusted by our customers.
